General Control Module¶

Introduced in MORe v5.11

Represents an control module system built from subsystem blocks.

Axis¶

If the control module is used to control an axis, select it here. This is only necessary for 3D-plot animation in transient analysis (mapping of setpoints to an axis).

System enabled¶

Enable/disable the system. Using a disabled system in a load will result in an error.

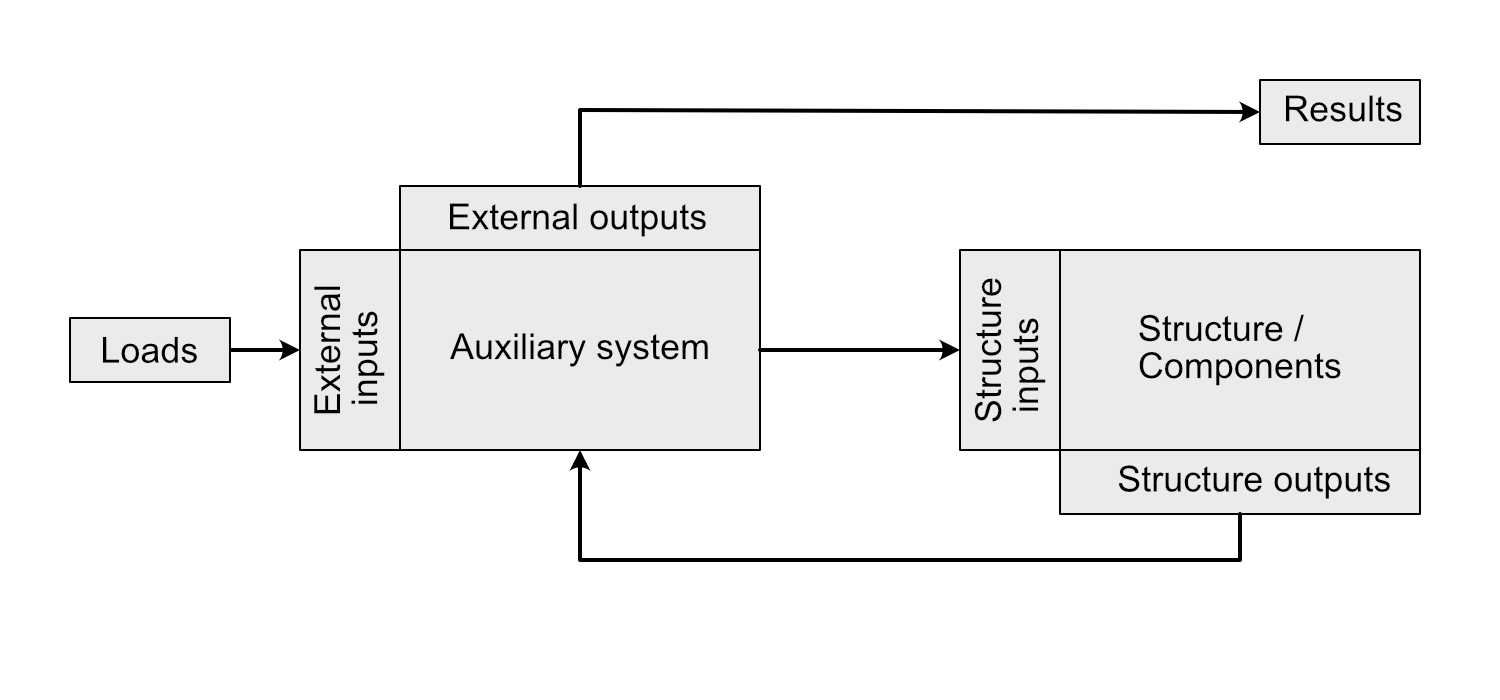

External inputs¶

Define the signals that can be used to apply a load in simulation.

External outputs¶

Define the signals that will be saved in simulation results.

Inputs to structure¶

Define the signals that will act on the FE structure.

Outputs to structure¶

Define the signals that are output from the FE structure.

Subsystems¶

Add subsystems.
