Cascaded Loop Controller¶
Introduced in MORe v3.0
Represents a controller for the mechanical system.
Axis¶
If the controller is used to control an axis, select it here. This is only necessary for 3D-plot animation in transient analysis (mapping of controller setpoints to an axis).
Controller enabled¶
Enable/disable the controller. Using a disabled controller in a load will result in an error.
Subsystems¶

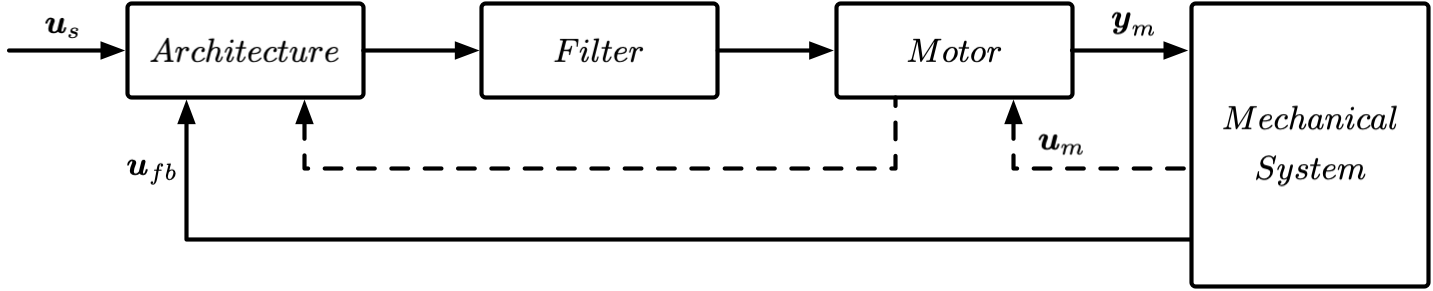

With the release of MORe v3.1, controller now consist of 3 subsystems.
